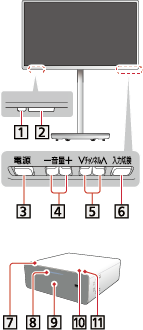

Indicator / Control panel
Power indicator Lights green: On
Depending on the ambient brightness, adjusts the brightness of LED to easy-to- view levels automatically.
Blinks green: The monitor is starting up. Lights red: Standby
Lights orange:
Standby with some functions*
● Blinks when the power indicator is on and the infrared signal is received from the remote control.
*: While recording is in progress, timer recording is in standby, the power-on timer is running, etc.
Remote control signal receiver (for infrared communication)
● Face the remote control at this part to control when switching the TV On or Off, or when controlling when the remote control has not been registered (paired).
Ambient sensor
This can automatically optimize the picture quality for the brightness of the viewing environment. Set [Ambient Sensor] (Picture Menu) to [On] to use this function.
Switches TV On or Off (Standby).
● To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.
Volume Up / Down Adjusts the volume.
Cursor Left / Right (when in menu operation) Channel Up / Down
Selects a channel in order.
Cursor Up / Down (when in menu operation)
Input selection
Press repeatedly to select the desired input. Menu
Press and hold this button to display / hide the menu.
Enter (when in menu operation)
Switches the tuner off (standby) / on.
It is not normally necessary to use the power button. Only press to turn on the tuner when changing the default settings on the tuner, for example.
LED
Blinks green (slowly):
Power is turning on, power is turning off.
Blinks blue:
Loading pictures / videos.
On standby for connecting after pressing [リンク ] button.
When setting ＬＥＤの明るさ（チューナー 部）(after pressing [ メニュー ] button, 設定
> 機器設定 > その他の設定 )
Blinks red:
For about 3 minutes before scheduled recording of a program, or when recording is not possible.
Lights red: Recording
Display window*
Shows the clock if the AC cable is connected. You should normally use the unit with the clock displayed.
*: While you are either putting the tuner into the power saving mode or performing setup operations for the tuner, messages such as [SETUP] and [MENU] are displayed. The LED also lights green.
After completing the settings, press the power button on the tuner to show the clock again.
Imports pictures and videos.
It is not normally necessary to use the link button, but follow the instructions on the monitor if the tuner cannot connect wirelessly with the monitor.
