What is the Panasonic Home Network System?
Overview
The Panasonic Home Network System is a wireless network of powerful devices that help you monitor, control, and manage your home. Its easy-to-use app allows you to stay in charge even when away from home.
Monitoring
You can use your smartphone or tablet to watch live images from your cameras, even when away from home. You can even talk to and listen to your cameras.
Select an item to learn more.
Peace of mind
You can use a variety of sensors, including motion sensors, window sensors, door sensors, and the sensor features built in to cameras, to trigger camera recording features, call a pre-programmed phone number when the alarm system is triggered, sound a siren, or send a notification to your smartphone or tablet.
Additionally, backup batteries can supply power to your devices in the event of a power failure.
Select an item to learn more.
Convenience

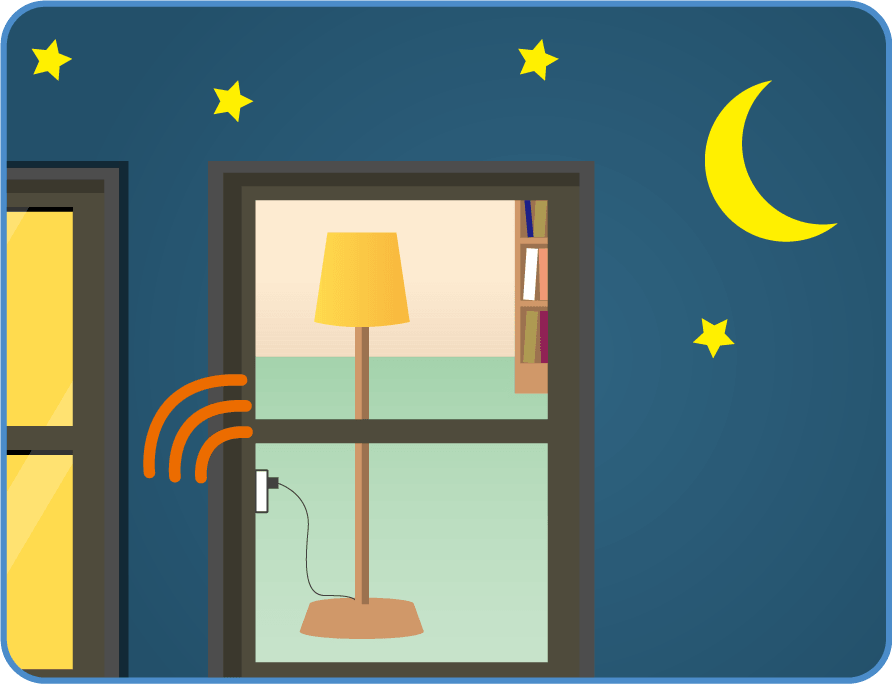

You can use your smartphone or tablet to turn on lights or other appliances that are connected to your smart plugs.*1
By installing keypads near frequently used entrances, you can arm and disarm the alarm system easily on your way out or as soon as you walk in the door.
Additionally, keychain remotes allow you to quickly arm and disarm the alarm system with a simple press of a button, with no screen locks or passwords to slow you down.
Select an item to learn more.
*1 Smart plug appearance varies by region.
Damage protection
You can use water leak sensors to notify your smartphone or tablet when water is detected.
Select an item to learn more.
Communication
You can use your smartphone, tablet, or a cordless handset to make and receive phone calls using your landline while at home.
Select an item to learn more.
What kinds of devices are available?
Overview
The Home Network System can be expanded to suit your needs. You can choose a pre-configured bundle, add individual devices to an existing bundle, or build your own system by selecting the desired devices.
Panasonic Home Network System device lineup
The maximum number of devices for each device type are listed below.
- Availability and release dates of devices and bundles may vary by region.
- Device appearance may vary by region.
|
| 1 |
|
| 16*1 |
|
| 4 |
|
| |
|
| 50 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| 6 |
*1 This number indicates the number of devices that can be registered to the hub. Depending on the specifications of your wireless router, the number of devices that can be accessed may be lower.
Hub (KX-HNB600, FV-HBVK1)
- Joins all system devices together
- Connects to your landline for making and receiving calls
- Supports SD card connection for recording video and audio from indoor and outdoor cameras
- KX-HNB600 is shown here and throughout this document.
HD Camera (KX-HNC800, KX-HNC805)
- Full-color, high-definition camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion sensor (visual detection), sound sensor, and temperature sensor can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
Indoor Camera (KX-HNC200, KX-HNC210)
- Full-color camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion sensor (visual detection), sound sensor, and temperature sensor can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
Outdoor Camera (KX-HNC600)
- Full-color camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion detection features (image sensor and infrared sensor) can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
- Splash-proof design for outdoor installation

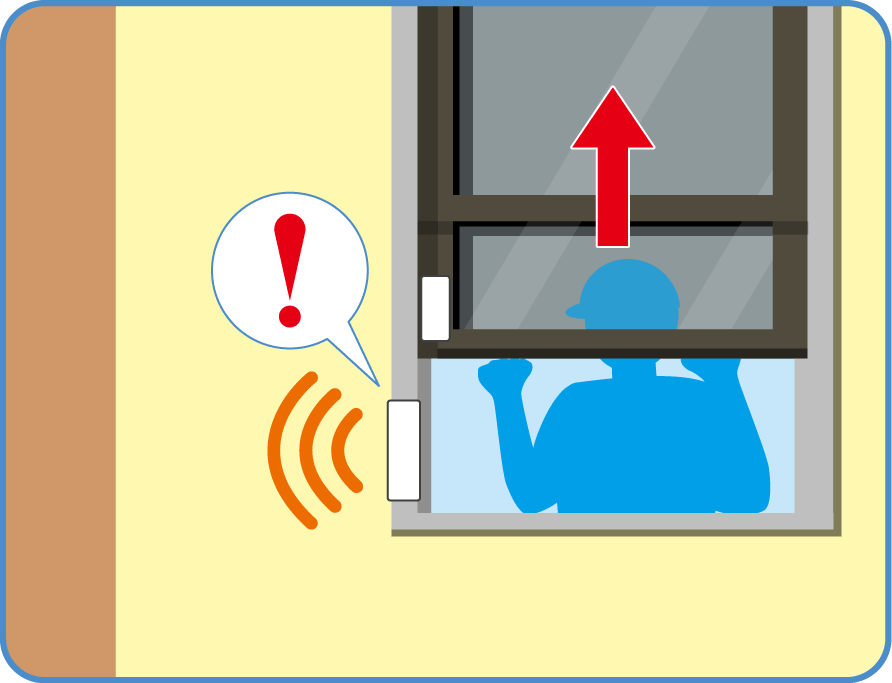

Window/Door Sensor (KX-HNS101)
- Detects when the corresponding window or door is opened
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Motion Sensor (KX-HNS102)
- Uses an infrared sensor (i.e., heat sensor) to detect motion in the surrounding area
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Water Leak Sensor (KX-HNS103)
- Uses a small probe that can detect water
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Glass Break Sensor (KX-HNS104)
- Uses a microphone that can detect the unique sound frequencies that are produced when glass breaks
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Indoor Siren (KX-HNS105)
- Uses a loudspeaker and strobe light to alert you when the alarm system is triggered
- You can enable and disable the loudspeaker and strobe light for each siren
Smart Plug (KX-HNA101)
- Can be turned on and off using the app, when a sensor is triggered, or according to a schedule
- Built-in overcurrent and overwattage detection for added peace of mind
- Power consumption is logged for your reference
Access Keypad (KX-HNK101)
- Allows you to quickly confirm and change the alarm system’s arm mode
- Can be wall mounted inside your home near the entrances and exits for easy access
Keychain Remote (KX-HNK102)
- Allows you to quickly change the alarm system’s arm mode when you come home or are going out
- Can be used to trigger a pre-programmed operation, such as turning on a smart plug or sounding an alert
- Can be attached to a set of keys for added convenience
Backup Battery (KX-HNP100)
- Supplies power to your hub or other devices in the event of a power outage
- Can be used to trigger the hub to call a pre-programmed phone number in the event of a power outage
Digital Cordless Handset (KX-HNH100)
- Makes and receives calls using your landline
- Can be used to change the alarm system’s arm mode
- Displays system status
