What is the Panasonic Home Network System?
Overview
Although you can use the HD camera by itself, it can also be integrated into the Panasonic Home Network System.
What is the Panasonic Home Network System?
The Panasonic Home Network System is a wireless system that uses DECT technology to create a powerful network of devices, including motion sensors, window/door sensors, smart plugs, etc., and control them all with an easy-to-use app.
What are some example uses?
- Use the system’s sensors to trigger HD camera recording
Camera images can be recorded automatically when a door is opened, when motion is detected, etc. - Use the HD camera’s motion sensor to trigger the alarm system
You can receive a phone call and notification when the camera’s motion sensor detects motion.
What do I need to get started?
Your HD camera and a KX-HNB600 or FV-HBVK1 hub.*1 The hub joins all system devices together using DECT technology, connects to your wireless router, and can also connect to your landline.
*1 KX-HNB600 is shown here and throughout this document.
What other devices are available?
- Activity detection sensors, such as motion sensors and window/door sensors
- Smart plugs, which can turn electric devices on when triggered by a sensor or according to a schedule
- and more!
For a complete list of devices, see “Panasonic Home Network System device lineup”.
Monitoring
You can use your smartphone or tablet to watch live images from your cameras, even when away from home. You can even talk to and listen to your cameras.
Select an item to learn more.
Peace of mind
You can use a variety of sensors, including motion sensors, window sensors, door sensors, and the sensor features built in to cameras, to trigger camera recording features, call a pre-programmed phone number when the alarm system is triggered, sound a siren, or send a notification to your smartphone or tablet.
Additionally, backup batteries can supply power to your devices in the event of a power failure.
Select an item to learn more.
Convenience
You can use your smartphone or tablet to turn on lights or other appliances that are connected to your smart plugs.*1
By installing keypads near frequently used entrances, you can arm and disarm the alarm system easily on your way out or as soon as you walk in the door.
Additionally, keychain remotes allow you to quickly arm and disarm the alarm system with a simple press of a button, with no screen locks or passwords to slow you down.
If your home’s ventilation fans are compatible with the system, you can use your mobile device to control individual fans and your home’s overall airflow. (Requires FV-HBVK1 hub.)
You can even integrate a compatible Honeywell thermostat with the hub and its connected devices.
Select an item to learn more.
*1 Smart plug appearance varies by region.
Damage protection
You can use water leak sensors to notify your smartphone or tablet when water is detected.
Select an item to learn more.
Communication
You can use your smartphone, tablet, or a cordless handset to make and receive phone calls using your landline while at home.
Select an item to learn more.
What kinds of devices are available?
Overview
The Home Network System can be expanded to suit your needs. You can choose a pre-configured bundle, add individual devices to an existing bundle, or build your own system by selecting the desired devices.
Panasonic Home Network System device lineup
The maximum number of devices for each device type are listed below.
- Availability and release dates of devices and bundles may vary by region.
- Device appearance may vary by region.
|
| 1 |
|
| 16*1 |
|
| 4 |
|
| |
|
| 50 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| 6 |
*1 This number indicates the number of devices that can be registered to the hub. Depending on the specifications of your wireless router, the number of devices that can be accessed may be lower.
Third-party device integration
|
|
Hub (KX-HNB600, FV-HBVK1)
- Joins all system devices together
- Connects to your landline for making and receiving calls
- Supports SD card connection for recording video and audio from indoor and outdoor cameras
- KX-HNB600 is shown here and throughout this document.
HD Camera (KX-HNC800, KX-HNC805)
- Full-color, high-definition camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion sensor (visual detection), sound sensor, and temperature sensor can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
Indoor Camera (KX-HNC200, KX-HNC210)
- Full-color camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion sensor (visual detection), sound sensor, and temperature sensor can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
Outdoor Camera (KX-HNC600)
- Full-color camera with night vision and built-in microphone for live monitoring and recording
- Built-in motion detection features (image sensor and infrared sensor) can be used to trigger other actions (camera recording, turning on a light, etc.)
- Built-in microphone and speaker for two-way communication
- Splash-proof design for outdoor installation

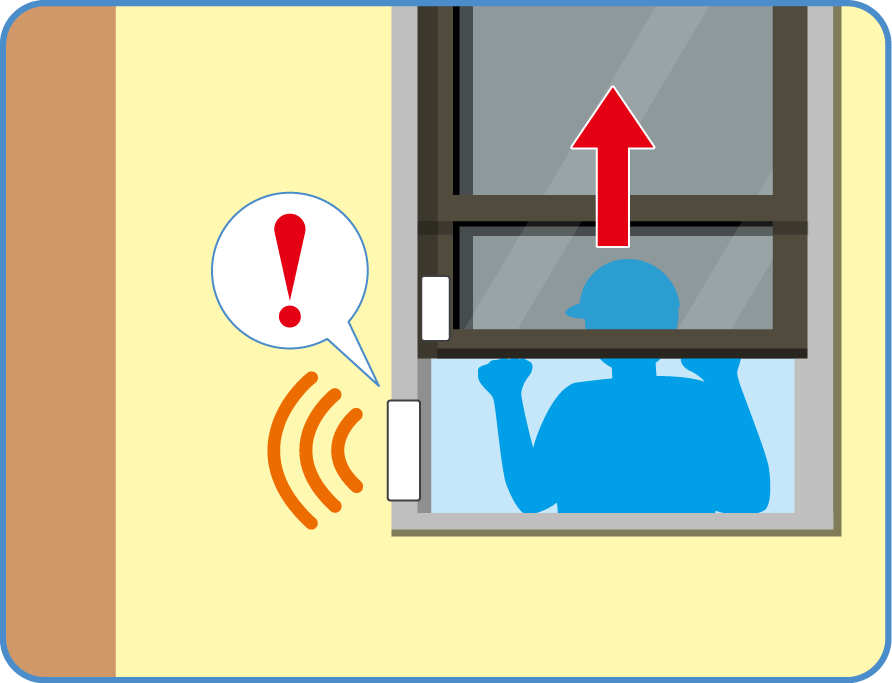

Window/Door Sensor (KX-HNS101)
- Detects when the corresponding window or door is opened
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Motion Sensor (KX-HNS102)
- Uses an infrared sensor (i.e., heat sensor) to detect motion in the surrounding area
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Water Leak Sensor (KX-HNS103)
- Uses a small probe that can detect water
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Glass Break Sensor (KX-HNS104)
- Uses a microphone that can detect the unique sound frequencies that are produced when glass breaks
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Indoor Siren (KX-HNS105)
- Uses a loudspeaker and strobe light to alert you when the alarm system is triggered
- You can enable and disable the loudspeaker and strobe light for each siren
Garage Door Sensor (KX-HNS107)
- Detects when the garage door has been opened and closed
- Allows the hub to notify you when the garage door is opened, and when it has been left open
- Can be used to trigger other actions (camera recording, turning on a light, etc.)
Smart Plug (KX-HNA101)
- Can be turned on and off using the app, when a sensor is triggered, or according to a schedule
- Built-in overcurrent and overwattage detection for added peace of mind
- Power consumption is logged for your reference
Access Keypad (KX-HNK101)
- Allows you to quickly confirm and change the alarm system’s arm mode
- Can be wall mounted inside your home near the entrances and exits for easy access
Keychain Remote (KX-HNK102)
- Allows you to quickly change the alarm system’s arm mode when you come home or are going out
- Can be used to trigger a pre-programmed operation, such as turning on a smart plug or sounding an alert
- Can be attached to a set of keys for added convenience
Backup Battery (KX-HNP100)
- Supplies power to your hub or other devices in the event of a power outage
- Can be used to trigger the hub to call a pre-programmed phone number in the event of a power outage
Digital Cordless Handset (KX-HNH100)
- Makes and receives calls using your landline
- Can be used to change the alarm system’s arm mode
- Displays system status
Thermostat integration
- Wi-Fi compatible Honeywell thermostats can be registered to the hub
- Use your smartphone or tablet to control the thermostat manually
- Configure the hub to change thermostat settings automatically according to the alarm system’s arm mode
- For a list of compatible thermostats, see “Compatible Honeywell thermostats”.
